Backend documentation¶

Authentication¶

Authentication in OS2BOS is based on SAML 2.0 single sign-on. Support for this is implemented through the module PySAML2.

Once a user has been authenticated, a session is created containing the attributes given to us from the IdP, e.g. the Active Directory groups the user belongs to.

SAML based single sign-on (SSO)¶

SAML SSO delegates the login process to the IdP, and as such, requires an IdP supporting SAML single sign-on.

Settings related to SAML SSO can be found in the SAML2_AUTH object in settings.py.

User setup¶

In local development and test, SAML SSO is used with SimpleSamlPHP as idP.

Users and user profiles are defined in dev-environment/authsources.php for local development. If you wish to add a new user, you need to add an entry to the file following this template:

'<brugernavn>:<password>' => array(
     'email' => '<email_adresse>',
     'username' => '<brugernavn>',
     'first_name' => '<fornavn>',
     'last_name' => '<efternavn>',
     'team' => '<team (navn)>',
     'bos_profile' => '<profil>'
),

A user that is not allowed to use OS2BOS, must have a SAML-token with an empty or missing bos_profile entry.

User profiles¶

There are five user profiles corresponding to five different levels of permissions.

“readonly” - the user can only read, not write.
“edit” - the user can both read and write, but cannot perform grant operations.
“grant” - the user can both read, write and perform grant operations, but cannot access Django admin.
“workflow_engine” - the user can both read, write and perform grant operations, and can access only classifications in Django admin.
“admin” - the user can read, write, perform grant operations and access Django admin.

Integrations¶

Serviceplatformen¶

We use Serviceplatformen to fetch information from the CPR register. Support for this is implemented through the module service_person_stamdata_udvidet.

Settings relevant to Serviceplatformen can be found in the SERVICEPLATFORM_UUIDS object and the SERVICEPLATFORM_CERTIFICATE_PATH, USE_SERVICEPLATFORM, USE_SERVICEPLATFORM_PROD keys in settings.py.

Virk.dk¶

We use Virk.dk to fetch information from their CVR register. Support for this is implemented through the module virk.dk.

Settings relevant to Virk.dk are the USE_VIRK, VIRK_USER, VIRK_PASS and VIRK_URL keys found in settings.py.

PRISME¶

OS2BOS can export daily payment files for import into the PRISME economy system. The format of the files are based on KMD’s interface specification GF200001Q for creditor records (transaction type G68).

Generating database documentation¶

The database documentation can be found in an online version here: os2bosdocs.

We generate database documentation using the tool SchemaSpy. The following commands are run from inside the container as root: docker-compose exec -u 0 bev bash

Install a JRE:

apt-get install default-jre

Install graphviz:

apt-get install graphviz

Download the latest schemaspy.jar

wget https://github.com/schemaspy/schemaspy/releases/download/v6.1.0/schemaspy-6.1.0.jar -O schemaspy.jar

Download the latest JDBC for Postgresql:

wget https://jdbc.postgresql.org/download/postgresql-42.2.8.jar -O postgresql.jar

Run SchemaSpy against the database:

java -jar schemaspy.jar -dp postgresql.jar -t pgsql -s public -db bev -host db -u bev -p bev -o er_html

The documentation is now found in the er_html folder.

Django debugging¶

To debug end-to-end you can set the breakpoint() you want and use docker attach:

docker attach bevillingsplatform_bev_1

Release procedure¶

We manage releases using the Gitflow model.

Create a release branch for the release, e.g. release/1.0.0.
Bump the version and changelog in NEWS.rst and VERSION according to Semantic Versioning.
Optional: Check our dependencies for new security bugfixes.
Optional: In case of API changes, save the OpenAPI schema openapi.yml from <OS2BOS URL>/api/openapi/?format=api for use in documentation.

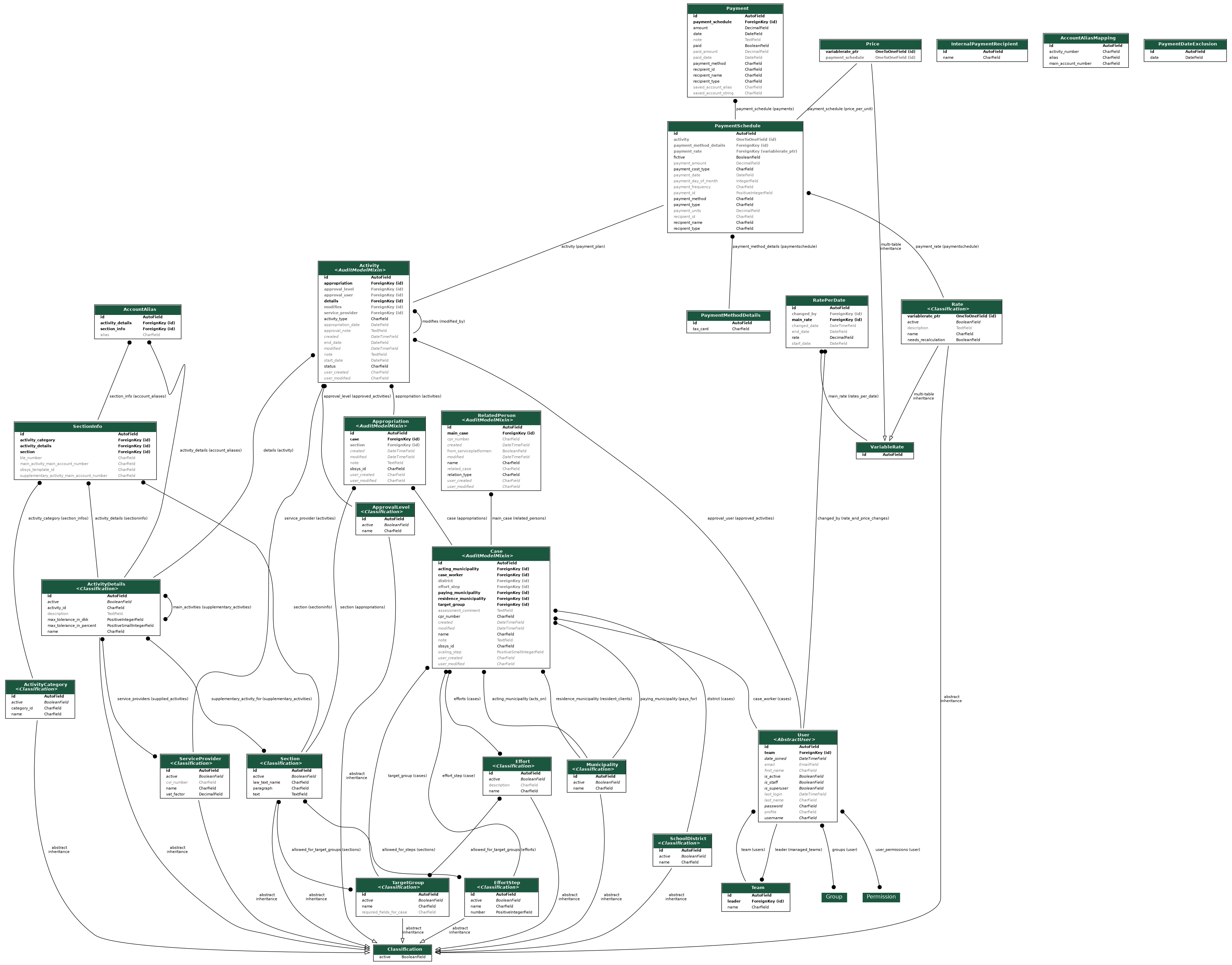

Optional: In case of model changes, update the database model graph by running tox -e graph for use in documentation.
Test the release and verify that it doesn’t contain any breaking bugs or regressions.
Create an rc tag, e.g. 1.0.0-rc1 on the release branch to make it deployable on staging.
In case of further development, make pull requests against the release branch and create a new rc tag.
Proceed with development and rc-tagging on the release branch until the customer is happy.
Create a pull request from the release branch to master for review of VERSION and ǸEWS.rst bump.
Create a pull request from the release branch to develop.
Merge the pull requests.
Create a release tag, e.g. 1.0.0 from master.
Push develop, master and tags to the OS2BOS Github as the new core version.
Delete the release branch.

API documentation¶

GET /api/cases/¶

Viewset exposing Case in the REST API.

Note the custom actions history and change_case_worker.

Query Parameters

created (string) – created
modified (string) – modified
user_created (string) – user_created
user_modified (string) – user_modified
sbsys_id (string) – sbsys_id
cpr_number (string) – cpr_number
name (string) – name
case_worker (string) – Sagsbehandler
district (string) – district
paying_municipality (string) – paying_municipality
acting_municipality (string) – acting_municipality
residence_municipality (string) – residence_municipality
target_group (string) – target_group
effort_step (string) – effort_step
scaling_step (string) – scaling_step
assessment_comment (string) – assessment_comment
efforts (string) – efforts
note (string) – note
expired (string) – Udgået

Example request:

GET /api/cases/ HTTP/1.1
Host: example.com

Status Codes
